Customer-specific units

Units from Wieland are designed and developed after customer specific requirements.

The components are also used in machinery of well-known machine tool manufacturers and include units for turning, drilling and threading, interpolation turn milling, tool changing as well as brushing and finishing. Furthermore, moveable column units, electromechanical facing units and 3D saw stations have been provided.

Notre gamme de produits

Aperçu de nos produits customer-specific units

Wieland Anlagentechnik

Notre gamme Wieland Anlagentechnik de produits.

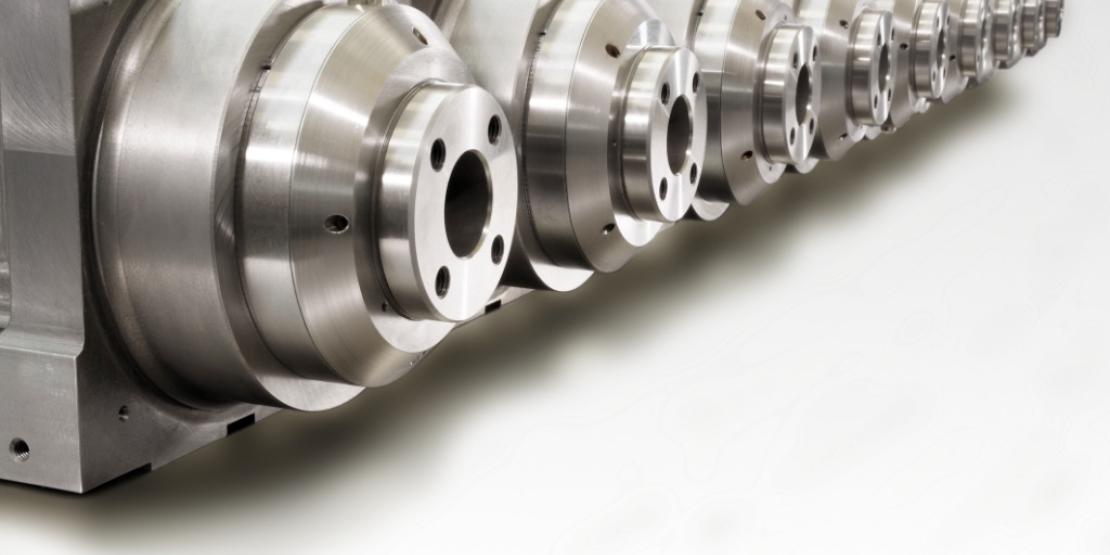

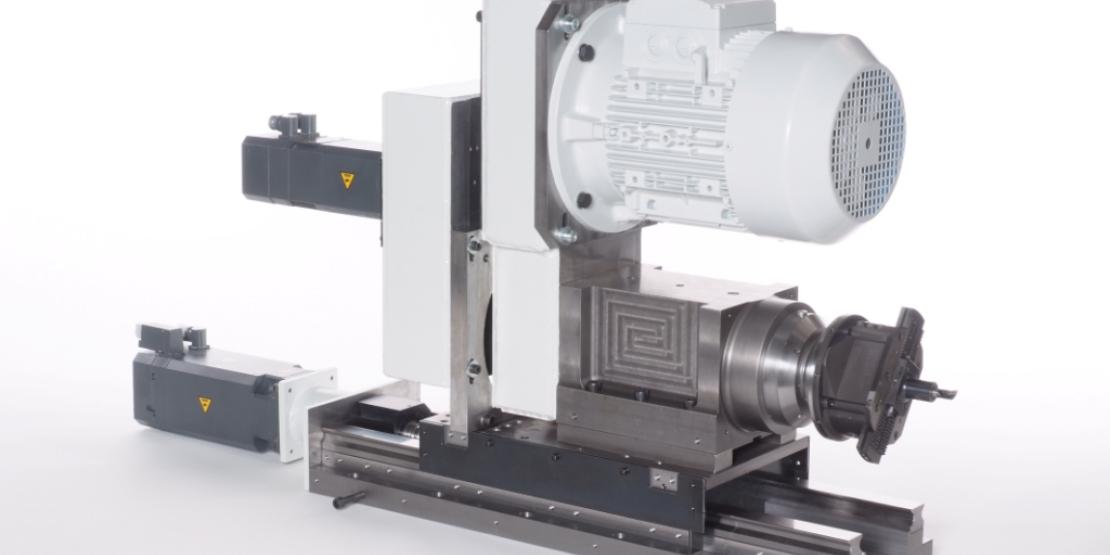

Spindle units

Slide units

Facing units

Special units

Diameter spindle bearing	Nominal width (mm)	Spindle head HSK (mm)	Max. spindle speed (U/min)	Max. power(kW)
SP35	100	40	16.000	2,2
SP45	125	50	12.000	4
SP70	200	63	7.000	11
SP100	250	80	4.000	22
SP120	320	100	3.000	40

The size units given in the table are standard values, but we also offer individual combinations. We will be happy to provide you with a 3D model on request.

Les caractéristiques des produits et des matériaux indiquées dans ce document sont génériques et ne sont fournies qu'à titre d'information générale. Les déclarations sur l'adéquation des produits et des matériaux à certaines applications sont basées sur des exigences typiques et ne remplacent en aucun cas le conseil d’un expert. Wieland décline toute responsabilité pour les dommages résultant du fait de s’être fié aux informations fournies dans le présent document.

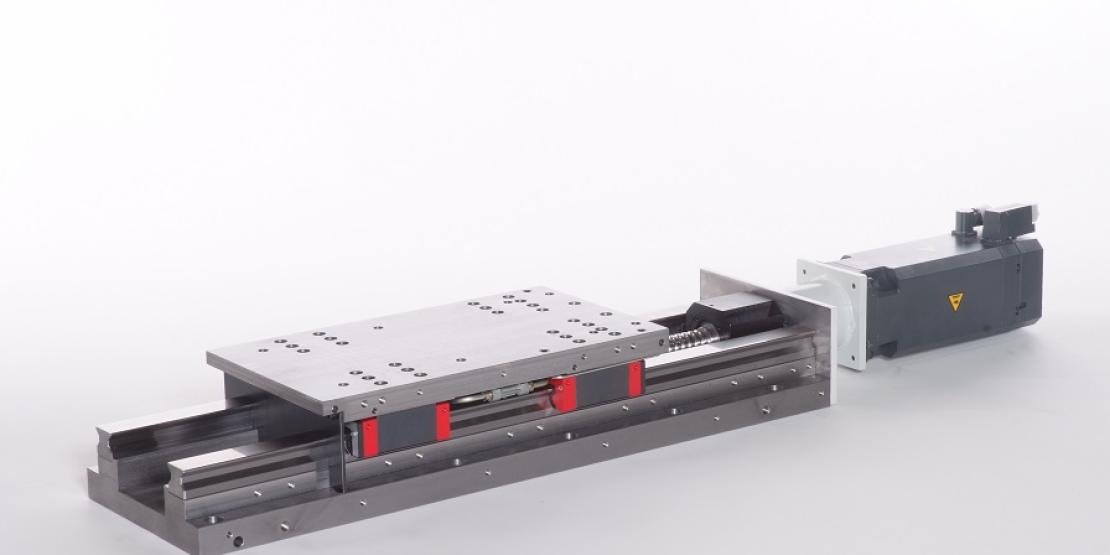

1-axis slide units
are used for positioning or feed motions. Roller monorail guidance systems and electromechanical drives are preferably used. Other guidance and drive systems are designed according to requirements (hydrostatic, hydrodynamic, etc.)

2-axis slide units
Slide units in rectangular arrangement allow movement in two directions. Highest rigidity and precision are the prerequisites for process reliability of the machinery.

3-axis slide units
can be individually combined with different facing heads, for example, as integrated, attached, single-spindle, multi-spindle types or with turret, tool changer, etc.
These units are characterised by compact and rigid design.

Design:	1-axis- , 2-axis-, 3-axis-units
Guide:	rolling guide, hydrodynamic or hydrostatic guide
Nominal width:	125, 250, 400, 630, 800 mm
Nominal strokes:	160, 250, 400, 630, 800 mm
Drives:	servo motor, hydraulic, pneumatic
Options:	linear scale, integrated built-in spindle, direct or offset drive, telescopic covers

Machining units with facing heads on special purpose machines are used for the machining of rotationally symmetrical contours on components.
This makes it possible to carry out machining operations such as facing, boring, plunge cutting, NC copy turning, back-
face machining and chamfering, etc.
Our spindle units are equipped with a cross-feed device for heavy-duty machining or a rotationally actuated system for high-precision machining.

NC facing units with crossfeed device
The NC facing unit PZM transmits the actuating force via a drawbar to the tool. Thermal expansion can be compensated within the crossfeed system.

NC facing units with rotary drive
The NC facing unit RM snychronises automatically on the spindle drive and correspondingly transmits a rotatory positioning movement to the tool. This results in high precision even with high strokes and is achieved without thermal expansion.

Deviating from our standard machinery, we provide solutions that are tailored to your specific machining requirements:
projected special units / spindle units / drilling units / tapping units.

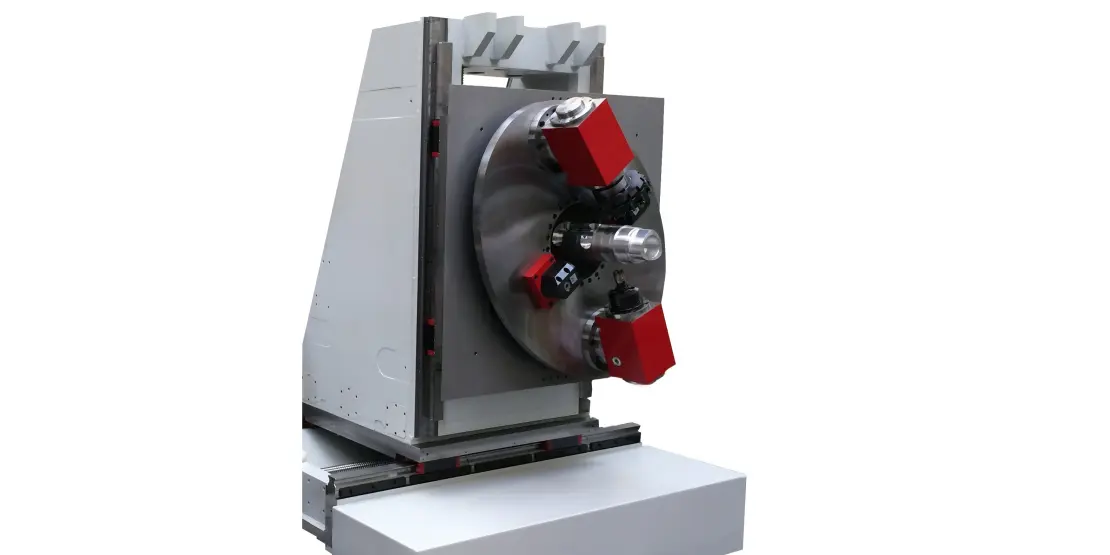

Moveable column units with tool changing systems:
Brushing module / finishing module / interpolation turn milling module.
