Wieland Roessler GmbH

Wieland Roessler was founded in 1955 and has been part of the Wieland Group since 1993. Strip made of copper and copper alloys is slit to customer requirements on 3 high-performance slitting lines. Also plated, milled and traverse-wound strip could be supplied.

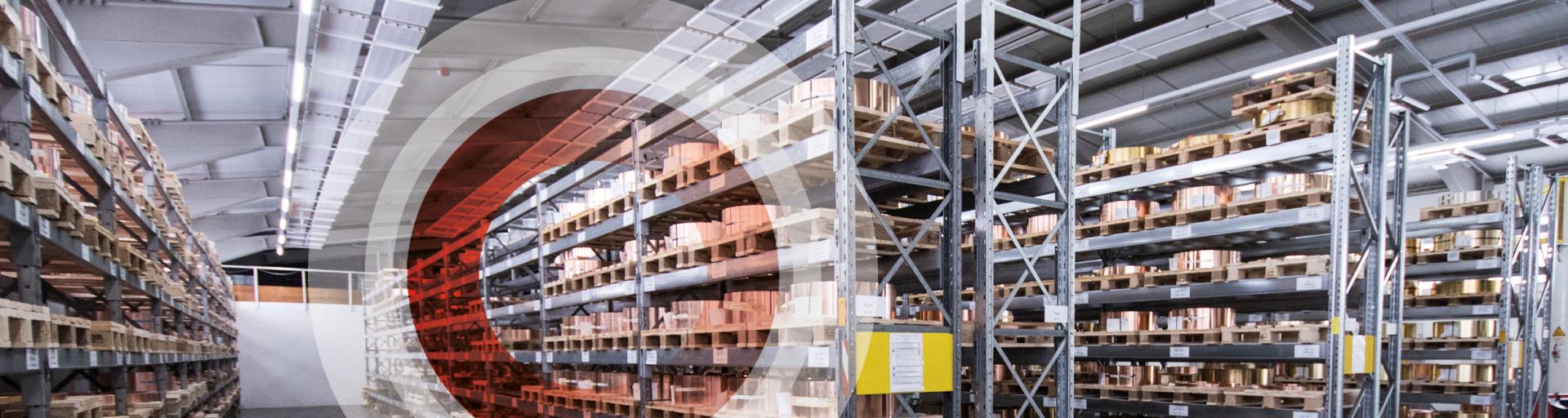

Large number of strip articles in stock
Slitting of strip
Thicknesses from 0.10 to 2 mm and widths from 3 to 300 mm possible
Inside diameters of 300, 400 or 500 mm possible
Certified according to DIN EN ISO 9001 and DIN EN ISO 14001

Organization

Rolled Products

Wieland Roessler GmbH Josefsthaler Straße 4
87600 Kaufbeuren

Germany (UTC+1)

+49 8341 9798 0
F +49 8341 9798 40
Send email

Business hours

Monday - Thursday
7:30 am - 12:00 pm
1:00 pm - 5:00 pm
Friday
7:30 am - 1:30 pm

Goods acceptance times

Monday - Thursday
8:00 am - 11:30 pm
1:00 pm - 4:00 pm
Friday
8:00 am - 11:30 am

Plan route

Facts

1955

founded

> 200

strip articles in stock

employees

Metal Information

Current metal prices

Officials (Prompt)

20.12.2024

Cu (Settlement)

8,793.00 USD/to

Zn (Settlement)

2,958.00 USD/to

EUR (Bid)

1.03605 USD

All details and charts

Products

Our products at a glance

Product categories

Learn more
Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	Dimensions	Temper
K32	Cu-ETP	CW004A	C11000	C1100	0,15 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,20 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,30 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,40 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,50 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,80 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	1,00 mm	F20 / R200
K32	Cu-ETP	CW004A	C11000	C1100	0,10 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,20 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,30 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,40 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,50 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,60 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,79 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,80 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	1,00 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	1,20 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	1,50 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	2,00 mm	F25 / R240
K32	Cu-ETP	CW004A	C11000	C1100	0,50 mm	F30 / R290
K32	Cu-ETP	CW004A	C11000	C1100	0,60 mm	F30 / R290
K32	Cu-ETP	CW004A	C11000	C1100	0,79 mm	F30 / R290
K32	Cu-ETP	CW004A	C11000	C1100	0,80 mm	F30 / R290
K32	Cu-ETP	CW004A	C11000	C1100	1,00 mm	F30 / R290
K32	Cu-ETP	CW004A	C11000	C1100	0,50 mm	F37 / R360
K32	Cu-ETP	CW004A	C11000	C1100	0,79 mm	F37 / R360
K32	Cu-ETP	CW004A	C11000	C1100	0,80 mm	F37 / R360

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	Dimensions	Temper
M15	CuZn15	CW502L	C23000	C2300	0.25 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.30 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.35 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.40 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.50 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.60 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.80 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.25 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.80 mm	F26
M15	CuZn15	CW502L	C23000	C2300	0.25 mm	F37
M15	CuZn15	CW502L	C23000	C2300	0.80 mm	F37
M28	CuZn28	CW504L	C25600		0.60 mm	F35
M28	CuZn28	CW504L	C25600		0.80 mm	F35
M28	CuZn28	CW504L	C25600		0.80 mm	F42
M30	CuZn30	CW505L	C26000	C2600	0.79 mm	F35
M30	CuZn30	CW505L	C26000	C2600	0.79 mm	F42
M37	CuZn37	CW508L	C27200	C2720	0.80 mm	R410
M37	CuZn37	CW508L	C27200	C2720	0.10 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.15 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.20 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.30 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.40 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.50 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.60 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.70 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.80 mm	F44
M37	CuZn37	CW508L	C27200	C2720	1.00 mm	F44
M37	CuZn37	CW508L	C27200	C2720	1.20 mm	F44
M37	CuZn37	CW508L	C27200	C2720	1.50 mm	F44
M37	CuZn37	CW508L	C27200	C2720	2.00 mm	F44
M37	CuZn37	CW508L	C27200	C2720	0.15 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.20 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.25 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.30 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.35 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.40 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.50 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.60 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.70 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.80 mm	F54
M37	CuZn37	CW508L	C27200	C2720	1.00 mm	F54
M37	CuZn37	CW508L	C27200	C2720	0.20 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.25 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.40 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.50 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.60 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.80 mm	F30
M37	CuZn37	CW508L	C27200	C2720	1.00 mm	F30
M37	CuZn37	CW508L	C27200	C2720	1.20 mm	F30
M37	CuZn37	CW508L	C27200	C2720	1.50 mm	F30
M37	CuZn37	CW508L	C27200	C2720	2.00 mm	F30
M37	CuZn37	CW508L	C27200	C2720	0.15 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.20 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.25 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.30 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.40 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.50 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.60 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.79 mm	F37
M37	CuZn37	CW508L	C27200	C2720	0.80 mm	F37
M37	CuZn37	CW508L	C27200	C2720	1.00 mm	F37
M37	CuZn37	CW508L	C27200	C2720	1.20 mm	F37
M37	CuZn37	CW508L	C27200	C2720	1.50 mm	F37

Wieland	EN Designation	EN No.	ASTM UNS-No.	Dimensions	Temper
B16	CuSn6	CW452K	C51900	0.20 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.30 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.40 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.50 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.60 mm	F 41 / R 420
B16	CuSn6	CW452K	C51900	0.79 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.80 mm	F41 / R420
B16	CuSn6	CW452K	C51900	1.00 mm	F41 / R420
B16	CuSn6	CW452K	C51900	0.10 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.15 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.18 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.20 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.25 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.30 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.35 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.38 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.40 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.50 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.60 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.70 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.79 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.80 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	1.00 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	1.20 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	1.50 mm	HV 160-190 / H160
B16	CuSn6	CW452K	C51900	0.10 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.15 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.20 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.25 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.30 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.35 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.38 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.40 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.50 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.60 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.63 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.70 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.79 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.80 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	1.00 mm	HV 180-210 / H180
B16	CuSn6	CW452K	C51900	0.20 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.25 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.30 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.35 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.40 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.50 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.60 mm	HV 200-230 / H200
B16	CuSn6	CW452K	C51900	0.20 mm	FB370 / B370
B16	CuSn6	CW452K	C51900	0.30 mm	FB370 / B370
B16	CuSn6	CW452K	C51900	0.40 mm	FB370 / B370
B16	CuSn6	CW452K	C51900	0.50 mm	FB370 / B370
B16	CuSn6	CW452K	C51900	0.30 mm	HV 200-220 / H190
B16	CuSn6	CW452K	C51900	0.50 mm	HV 190-210 / H190

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	Dimensions	Temper
N18	CuNi18Zn20	CW409J	C76400	C7521	0.30 mm	F38 / R380
N18	CuNi18Zn20	CW409J	C76400	C7521	0.20 mm	F45 / R450
N18	CuNi18Zn20	CW409J	C76400	C7521	0.25 mm	F45 / R450
N18	CuNi18Zn20	CW409J	C76400	C7521	0.50 mm	F45 / R450
N18	CuNi18Zn20	CW409J	C76400	C7521	0.15 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.20 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.25 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.30 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.40 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.50 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.60 mm	HV 160-190 / H160
N18	CuNi18Zn20	CW409J	C76400	C7521	0.80 mm	HV 160-190 / H160

* Material not standardized in EN

Capabilities

Multi-gauge strip

Strip with profiled cross section allows the dimensions of a component to be adapted to different requirements and reduces stamping or embossing costs.

Plated strip

In cooperation with certified partners we can supply tin, nickel and silver plated strip with a copper base layer where required.

Strip

Rolled products are normally delivered as strip in coils. We manufacture strip in coils with inside diameters of 300, 400 or 500 mm and outside diameters of up to 1,000 mm.

Traverse-wound strip

We supply traverse-wound strip in strip widths of up to 40 mm and weights of up to 500 kg on different drums, thus meeting your requirements in terms of long machine run times.
