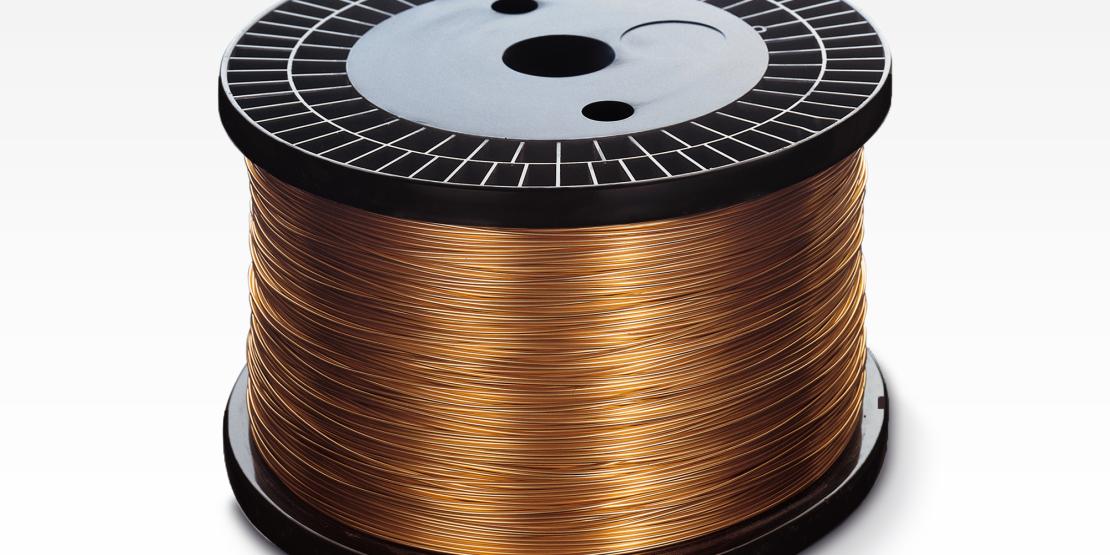

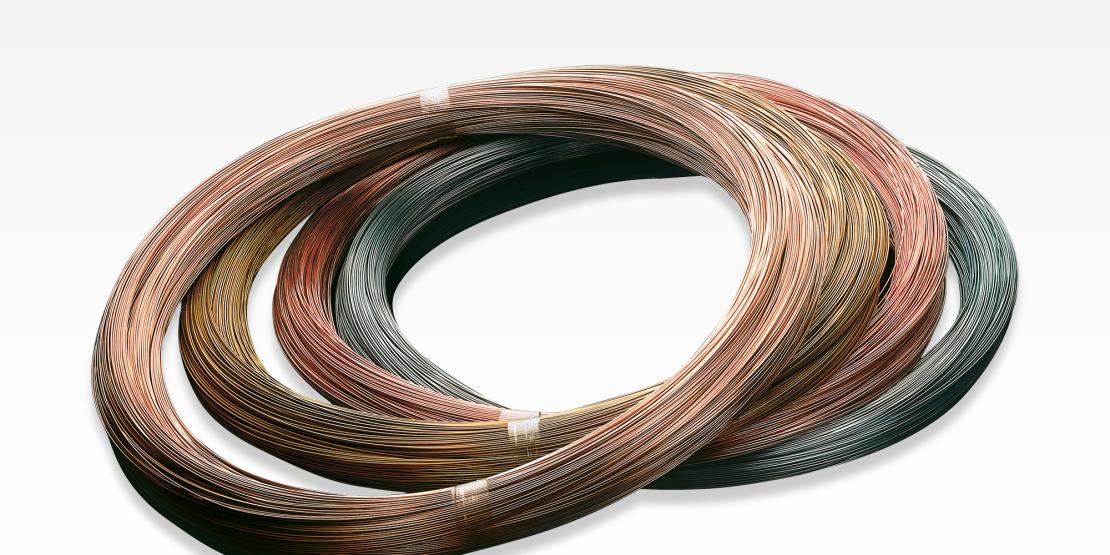

Wire and sectional wire

Whether complex or standard versions – we produce to your specifications. Wieland wire and sectional wire can be used for a great many applications, e.g. as filigree profiles for the optics industry, high conductivity round wires for the aerospace sector, and rectangular wires for zip fasteners.

You can choose from a virtually unlimited number of geometries, profiles, and delivery forms. Besides copper and the usual copper alloys, e.g. brass, German silver, and bronze, we also manufacture wires from special alloys, tailored to your specific applications.

Our range of products

Our wire and sectional wire at a glance.

Our complete product range

To show the product portfolio of a specific location, please select the company:

Wire

WITRONIC^®

WICONNEC

Wieland can offer you wire and sectional made of a wide range of materials: wrought copper alloys and alloys extending from brass, both with and without lead, to bronze, to German silver. And in combination with material properties, sizes, and geometries, our delivery portfolio can meet virtually every requirement. Simply contact us!

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K10	Cu-OFE	CW009A	-
K12	Cu-HCP	CW021A	C10300
K18/K32	Cu-ETP	CW004A	C11000
K30	Cu-OF	CW008A	C10200

Wieland	EN Designation	EN No.	ASTM UNS-No.
Elmedur HC	CuNi2Be	CW110C	C17510
Elmedur X	CuCrZr	CW106C	C18150
K41	CuNi1Pb1P*	-	C19150 / C19160
K52	CuNi2Si	CW111C	C70260
K53	CuNi2SiS*	-	-
K54	CuNi2SiCr*	-	C81540
K60	CuCr1Zr	CW106C	C18150
K61	CuCr1Zr	CW106C	C18200
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	RoHS compliant	REACH
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500		yes	Pb > 0.1
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z43	CuZn33Pb1AlSiAs	CW725R	-
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
L10/L13/L15	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	RoHS compliant	REACH
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M20	CuZn20	CW503L	C24000	C2400
M30/M34	CuZn30	CW505L	C26000	C2600
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720	yes	Pb < 0.1
eco M41^®	CuZn38As	CW511L	C27453		yes	Pb < 0.2
eco M57^®	CuZn42	CW510L	-		yes	Pb < 0.2
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland	EN Designation	EN No.	ASTM UNS-No.
B06	CuSn6	CW452K	C51900
B09/B10	CuSn8	CW453K	C52100
B12/B21	CuSn8P/CuSn8	CW459K/CW453K	C52100
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
BV9	CuSn6	CW452K	C51900
eco BS4^®	CuSn5NiPS*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
U35	CuAl10Ni5Fe4	CW307G	C63020
U36	CuAl11Fe6Ni6	CW308G	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
N22	CuNi12Zn24	CW403J	C75700
N29	CuNi18Zn20	CW409J	-
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
N48	CuNi12Zn38Mn5Pb2	CW407J	-
eco N59^®	CuNi9Zn41FeMn*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
High Density (HD)	-	-	-
Molybdän (Mo)	-	-	-
Molybdän-Lanthan (ML)	-	-	-
Niob (Nb)	-	-	-
Rhenium (Re)	-	-	-
Tantal (Ta)	-	-	-
Titan (Ti)	-	-	-
Titan-Zirkon-Molybdän (TZM)	-	-	-
Wolfram (W)	-	-	-
Wolfram-Kupfer (TUCO)	-	-	-
Wolfram-Rhenium	-	-	-
Zirkonium (Zr)	-	-	-

Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

Electrical and electronic applications often require materials that combine good electrical and mechanical properties. The wide range of Wieland alloys provides the optimal material for each and every application.

Learn more about
WITRONIC

The Wieland WICONNEC brand offers a range of copper materials in the form of bars and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers low cost brass materials in addition to specially developed copper alloys for complex applications.

Learn more about
WICONNEC
