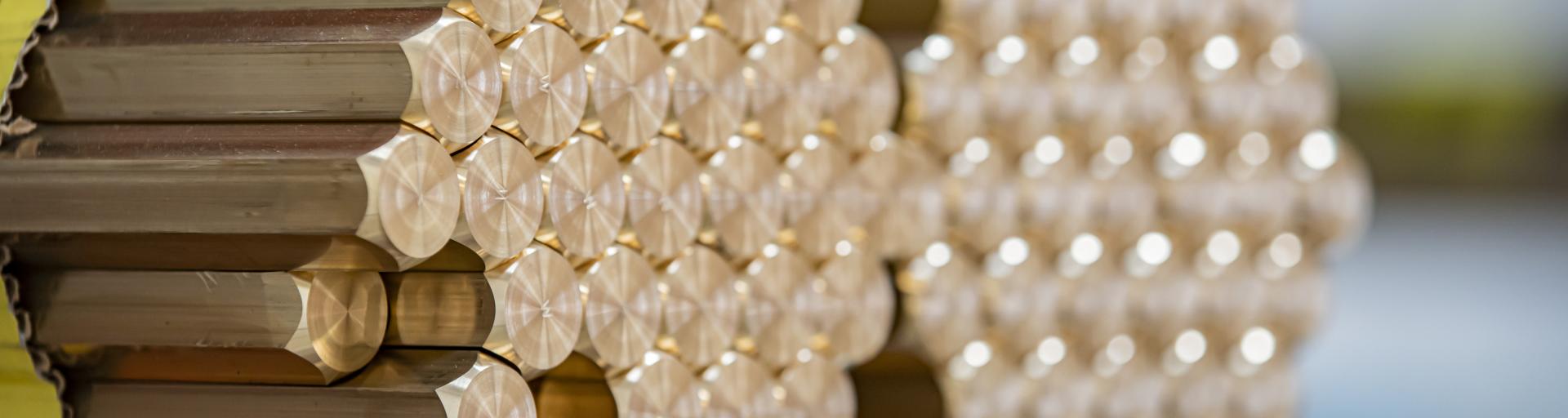

Rods and sectional rods

The right alloy, geometry, and strength – precise and efficient: simply Wieland. Rods and profiled rods are used in a wide range of applications, extending over forged sanitary fittings, lock cylinders and turned parts for machine construction. You can choose from a virtually unlimited number of sizes and geometries.

Special alloys tailored to your specific application are recommended by our Applications Engineering experts.

Our range of products

Our rods and sectional rods at a glance.

Our complete product range

To show the product portfolio of a specific location, please select the company:

Rods

Sectional rod

Machining

WICONNEC^®

ecoline^®: Lead-free solutions

Precision continuous casting

Forging Stock

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K18/K32	Cu-ETP	CW004A	C11000
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200

Wieland	EN Designation	EN No.	ASTM UNS-No.
Elmedur B2	CuBe2	CW101C	C17200
Elmedur HA	CuCoNiBe	CW103C	~C17500
Elmedur HC	CuNi2Be	CW110C	C17510
Elmedur NCS	CuNi2SiCr*	~CW111C*	C18000
Elmedur X	CuCrZr	CW106C	C18150
Elmedur Z	CuZr	CW120C	C15000
K41	CuNi1Pb1P*	-	C19150 / C19160
K44	CuNi1Pb0.6P*	-	C19140 / C19150
K52	CuNi2Si	CW111C	C70260
K53	CuNi2SiS*	-	-
K54	CuNi2SiCr*	-	C81540
K60	CuCr1Zr	CW106C	C18150
K61	CuCr1Zr	CW106C	C18200
K65	CuFe2P	CW107C	C19400
K81	CuSn0,15	CW117C	C14415
K96	CuCo1Ni1Be	CW103C	-
KC1	CuPb1P	CW113C	C18700
KD1	-	CW102C	-
KD3	-	CW118C	-
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250
K88	CuCrAgFeTiSi*	-	C18080

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z43	CuZn33Pb1AlSiAs	CW725R	-
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
EUCARO^®10	CuNi10Fe1,6Mn	CW 352H	C70600
L10/L13/L15	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
M10	CuZn10	CW501L	C22000	C2200
M15/M16/M17	CuZn15	CW502L	C23000
M20	CuZn20	CW503L	C24000	C2400
M30/M34	CuZn30	CW505L	C26000	C2600
M36	CuZn36	CW507L	C26800 / C27000	C2700
M37/M38	CuZn37	CW508L	C27200	C2720
eco M41^®	CuZn38As	CW511L	C27453
eco M57^®	CuZn42	CW510L	-
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S31	CuZn31Si1	CW708R	-
S35	CuZn35Ni3Mn2AlPb	CW710R	-
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340
eco SW1^®	CuZn21Si3P	CW724R	C69300
eco SW5^®	CuZn21Si3P	CW724R	C69300
eco SZ2^®	CuZn36Si1P	CW726R	C68370
eco SZ3^®	CuZn40SiP	-	-
eco SZ4^®	CuZn42	CW510L	C28500
eco SZ5^®	CuZn40	CW509L	C27450
ecobrass SW4	CuZn21Si3P	CW724R	C69305

Wieland	EN Designation	EN No.	ASTM UNS-No.
B06	CuSn6	CW452K	C51900
B09/B10	CuSn8	CW453K	C52100
B12/B21	CuSn8P/CuSn8	CW459K/CW453K	C52100
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
BV9	CuSn6	CW452K	C51900
eco BS4^®	CuSn5NiPS*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
U33	CuAl10Ni5Fe4	CW307G	C63000
U35	CuAl10Ni5Fe4	CW307G	C63020
U36	CuAl11Fe6Ni6	CW308G	-
U39	Cu Al10Fe3Mn2	CW306G	-

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
N18	CuNi18Zn20	CW409J	C76400	C7521
N22	CuNi12Zn24	CW403J	C75700
N29	CuNi18Zn20	CW409J	-
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-
N48	CuNi12Zn38Mn5Pb2	CW407J	-
eco N59^®	CuNi9Zn41FeMn*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
A01	AlMgSiBi	AW-6026	-
A02	AlCu6BiPb	AW-2011	-
A03	AlCu4MgSi(A)	AW-2017A	-
A07	AlZn5,5MgCu	AW-7075	-
A11	AlSi1Sn1MgBi	AW-6023	-
A12	AlMgSiPb	AW-6012	-
A13	AlMg3	AW-5754	-
A14	AlMg4,5Mn0,7	AW-5083	-
A22	AlMgSi	AW-6060	-
A32	AlSi1MgMn	AW-6082	-
AlMg1SiCu	-	EN AW-6061	-
AlSi1MnMgBi	-	EN AW-6026	-
Anticorodal-112	-	EN AW-6082	-
Decoltal-500	-	EN AW-2011	-
Perunal-215	-	EN AW-7075	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
PTX	≈11SMnPb37(+Bi+Te/Se)	≈1.0737	≈G12144
PX	≈11SMnPb37	≈1.0737	≈G12144

Wieland	EN Designation	EN No.	ASTM UNS-No.
X6CrNiCuS18-9-2 (h8)	X6CrNiCuS18-9-2 (h8)	1.4570	AISI 303Cu
X6CrNiCuS18-9-2 (h9)	X6CrNiCuS18-9-2 (h9)	1.4570	AISI 303Cu
X8CrNiS18-9 (h11)	-	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
X14CrMoS17 (h11)	-	-	-
X14CrMoS17 (h8)	X14CrMoS17 (h8)	1.4104	AISI 430F
X14CrMoS17 (h9)	X14CrMoS17 (h9)	1.4104	AISI 430F
X46CrS13 (h8)	X46CrS13 (h8)	1.4035	AISI 420C+S

Wieland	EN Designation	EN No.	ASTM UNS-No.
ETG 100	≈44SMn28	≈1.0762	≈G11440
ETG 88	≈44SMn28	≈1.0762	≈G11440

Wieland	EN Designation	EN No.	ASTM UNS-No.
High Density (HD)	-	-	-
Molybdän (Mo)	-	-	-
Molybdän-Lanthan (ML)	-	-	-
Niob (Nb)	-	-	-
Rhenium (Re)	-	-	-
Tantal (Ta)	-	-	-
Titan (Ti)	-	-	-
Titan-Zirkon-Molybdän (TZM)	-	-	-
Wolfram (W)	-	-	-
Wolfram-Kupfer (TUCO)	-	-	-
Wolfram-Rhenium	-	-	-
Zirkonium (Zr)	-	-	-

Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

Wieland manufactures solid and hollow copper sections in a wide range of sizes. Featuring contours close to the final geometry, these sections help you obtain your finished parts in just a few operations. Together with you, we develop complex sections of copper from the draft to the initial prototypes to series production.

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K12	Cu-HCP	CW021A	C10300
K16	Cu-ETP1	CW003A	-
K18/K32	Cu-ETP	CW004A	C11000
K20/K21/K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
KA1	CuAg0,10P	CW016A	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
Elmedur NCS	CuNi2SiCr*	~CW111C*	C18000
Elmedur X	CuCrZr	CW106C	C18150

Wieland	EN Designation	EN No.	ASTM UNS-No.
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500

Wieland	EN Designation	EN No.	ASTM UNS-No.
B09/B10	CuSn8	CW453K	C52100
B12/B21	CuSn8P/CuSn8	CW459K/CW453K	C52100

Wieland	EN Designation	EN No.	ASTM UNS-No.
U33	CuAl10Ni5Fe4	CW307G	C63000

Wieland	EN Designation	EN No.	ASTM UNS-No.
N22	CuNi12Zn24	CW403J	C75700

Wieland	EN Designation	EN No.	ASTM UNS-No.
A22	AlMgSi	AW-6060	-

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
Elmedur B2	CuBe2	CW101C	C17200
Elmedur HA	CuCoNiBe	CW103C	~C17500
Elmedur HC	CuNi2Be	CW110C	C17510
Elmedur NCS	CuNi2SiCr*	~CW111C*	C18000
Elmedur X	CuCrZr	CW106C	C18150
Elmedur Z	CuZr	CW120C	C15000

Wieland	EN Designation	EN No.	ASTM UNS-No.
High Density (HD)	-	-	-
Molybdän (Mo)	-	-	-
Molybdän-Lanthan (ML)	-	-	-
Niob (Nb)	-	-	-
Rhenium (Re)	-	-	-
Tantal (Ta)	-	-	-
Titan (Ti)	-	-	-
Titan-Zirkon-Molybdän (TZM)	-	-	-
Wolfram (W)	-	-	-
Wolfram-Kupfer (TUCO)	-	-	-
Wolfram-Rhenium	-	-	-
Zirkonium (Zr)	-	-	-

The Wieland WICONNEC brand offers a range of copper materials in the form of rods and wires that are ideal for machined sockets and pins for plug connectors. This material portfolio also offers brass materials in addition to specially developed copper alloys for complex turned plug connectors.

WICONNEC

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
K44	CuNi1Pb0.6P*	-	C19140 / C19150
KC1	CuPb1P	CW113C	C18700
eco KS2^®	CuSP	CW114C	C14700

Wieland	EN Designation	EN No.	ASTM UNS-No.
K55	CuNi3Si1Mg*	-	C70250

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z10	CuZn37Pb0,5	CW604N	C33500
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z32/Z33	CuZn39Pb3	CW614N	C38500

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco S34^®	CuZn34Mn2SiAlNi*	-	C67340

Wieland	EN Designation	EN No.	ASTM UNS-No.
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
eco BS4^®	CuSn5NiPS*	-	-

Wieland ecoline is our answer to enable your future business: the lead-free product line fulfills your individual needs for an efficient production and future oriented product development. And is, of course, compliant with the latest requirements of legislative directives on lead-free materials.

Learn more about
Wieland ecoline

From Europe’s largest copper alloy foundry in Vöhringen/Iller (Germany), we can offer you far in excess of a hundred different copper materials. These include not only a wide range of continuous castings like tubes and rods, but also shaped rods and sections of complex geometries. At the same time, our flexibility ensures the prompt realisation of your special custom wishes.

Materials

Cast Alloy

Wieland	EN Designation	EN No.	ASTM UNS-No.
G05	CuSn5Zn5Pb5-C-GC	CC491K	-
G07/G08	CuSn7Zn4Pb7-C	CC493K	-
G10	CuSn10-C	CC480K	-
G12/G13	CuSn12-C	CC483K	-
G21	CuSn10Pb10-C-GC	CC495K	-
G22	CuSn7Pb15-C	CC496K	-
G91	CuSn11Pb2-C-GC	CC482K	-
GA1	CuSn11Pb2-C-GC	CC481K	-
GB1	CuSn12Ni2-C	CC484K	-
GD1	CuSn5Zn5Pb2-C-GC	CC499K	-
eco GS1^®	CuSn4Zn2PS-C-GC*	-	-

Wieland hot stamping rods

Good forging results can be obtained only when all links in the process chain have been matched to each other to the optimal effect. With Wieland hot stamping rods you are offered a forging stock which comprehensively fulfils these requirements. Your benefits: uniform dark surface for reproducible processing properties, tight diameter tolerances in the drawn size range, and hence precise configuration of the slug weight.

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
Elmedur B2	CuBe2	CW101C	C17200
Elmedur HA	CuCoNiBe	CW103C	~C17500
Elmedur HC	CuNi2Be	CW110C	C17510
Elmedur NCS	CuNi2SiCr*	~CW111C*	C18000
Elmedur X	CuCrZr	CW106C	C18150

Wieland	EN Designation	EN No.	ASTM UNS-No.
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
S35	CuZn35Ni3Mn2AlPb	CW710R	-
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco SW1^®	CuZn21Si3P	CW724R	C69300
ecobrass SW4	CuZn21Si3P	CW724R	C69305

Wieland	EN Designation	EN No.	ASTM UNS-No.
High Density (HD)	-	-	-
Molybdän (Mo)	-	-	-
Molybdän-Lanthan (ML)	-	-	-
Niob (Nb)	-	-	-
Rhenium (Re)	-	-	-
Tantal (Ta)	-	-	-
Titan (Ti)	-	-	-
Titan-Zirkon-Molybdän (TZM)	-	-	-
Wolfram (W)	-	-	-
Wolfram-Kupfer (TUCO)	-	-	-
Wolfram-Rhenium	-	-	-
Zirkonium (Zr)	-	-	-
