Grinding machines



    For highest precision grinding.

    We offer modular grinding machines for µ-accurate cylindrical and non-round grinding. Internal and external machining.




    Nasz asortyment produktów

    W grinding machines skrócie.

    Wieland Anlagentechnik

    Oto nasze Wieland Anlagentechnik portfolio produktów.

    DT 100 IA

    DT 500 SK

    DT 600 SK

    DT 700 VIPA

    DT 2000 ZPS

    DT 3000 SRK

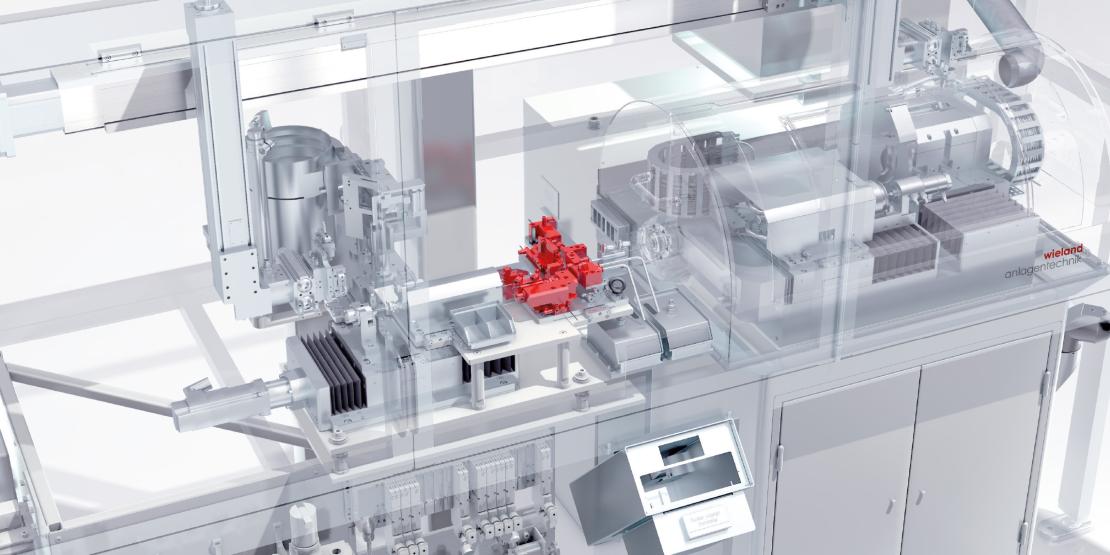

    The DT 100 IA masters the complex internal and external machining of small workpieces, including transfer. The linked system grinds the inside diameter, faces or outside diameter of small chuck and shaft parts – highly precise via separate axes. The DT 100 IA also allows the use of in-process and post-process measuring devices. For the highest quality and safety in the product result!


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

    Contour grinding in one clamping

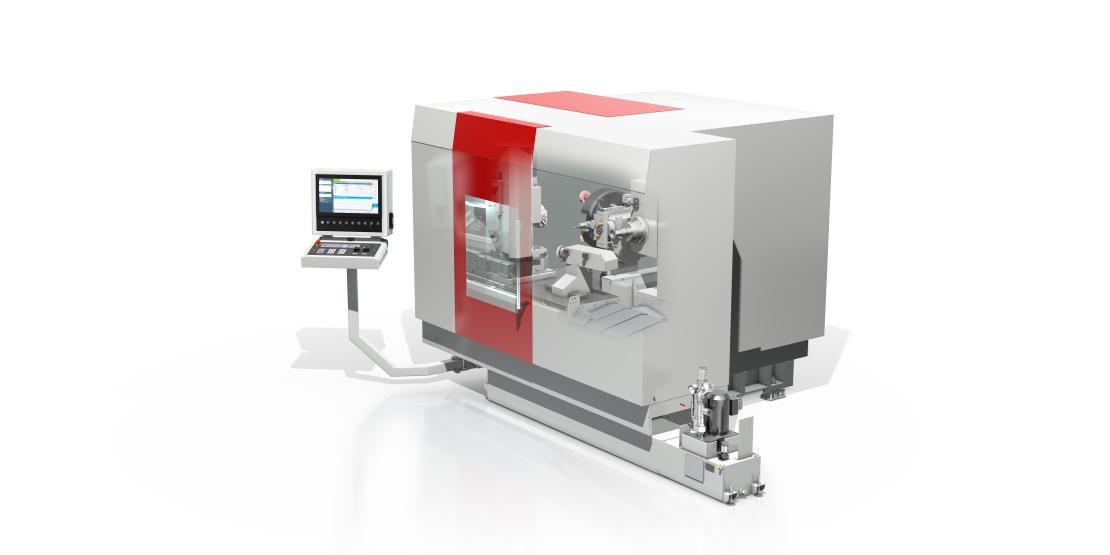

    The DT 500 CG is the optimum solution for µ-precise machining of geometrically complex workpieces. Thanks to the flexible 5-axis kinematics, multifunctional machining operations can be realized in one clamping. The machine is designed for non-round and contour grinding on high-precision parts such as mechanical engineering, aerospace, mobile hydraulics and medical technology.


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

    The DT 600 SK has established itself as a multifunctional machining center for efficient grinding, milling and turning. The 5-axis kinematics system enables flange-shaped parts to be produced in one operation. The advantage is fast, efficient production with maximum precision.


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

    VIPA processes flange-shaped workpieces inside, outside and faces – in one clamping. The components are set up before and outside of the 5-axis system. An integrated probe measures the part before and after grinding to ensure its perfect position.


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

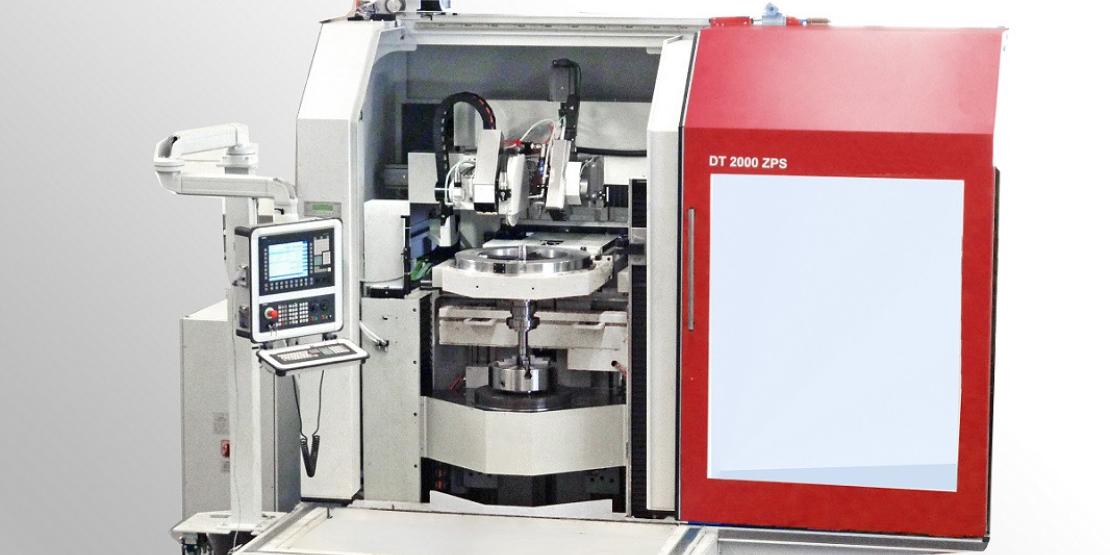

    The DT 2000 ZPS grinds the center as well as a frontal profile of shafts in one clamping. The shafts are dynamically aligned on the DT 2000 ZPS in advance and the center is then also dynamically ground. In order to guarantee a perfect position of the profile, measurements are taken before and after profile grinding using an integrated measuring probe.


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.

    The external and jig grinding machine DT 3000 SRK offers the possibility to measure, to adjust and to machine orthogonal arranged surfaces completely in one clamping / setup.


    Characteristics and properties of products / materials in this document are generic and provided solely for general information purposes. Any statement regarding the suitability of products / materials for certain types of applications is based on typical requirements and does not replace expert advice. Wieland disclaims all liability arising from any reliance on these documents.
