Wieland ecoline

Lead-free solutions for a sustainable future

Wieland France

Qualité supérieure, expertise technique, stocks importants, délais de livraison très courts – découvrez notre gamme de produits

Wieland France SAS

Wieland France SAS has been selling Wieland products made of copper and copper alloys on the French market from its Croissy-Beaubourg, Cluses and Yzengremer sites since 1968. The product portfolio consists of rods, wires, sheets and plumbing tubes.

Organization

Global Services

Wieland France SAS 30 Av. de la Colombière
74950 Scionzier

France (UTC+1)

+33 4 50 98 11 46
F +33 4 50 98 61 10
Send email

Business hours

Monday - Thursday
8:00 am - 12:00 pm
1:30 pm - 5:15 pm
Friday
8:00 am - 12:00 pm

Goods acceptance times

Monday - Thursday
8:00 am - 11:00 am
1:30 pm - 4:00 pm
Friday
8:00 am - 11:00 am

Our Product Range

Plan route

Facts

1968

founded in Paris

100

% subsidiary of Wieland-Werke AG

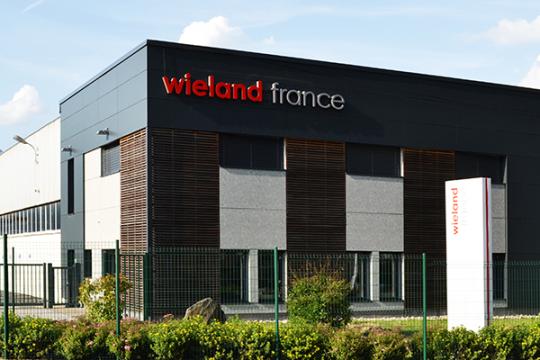

headquarter

in Cluses

warehouses in Marne-la-Vallée (77), Cluses (74) and Yzengremer (80)

Metal information

Current metal prices

All details

Locations

Global proximity you can count on

Wieland France SAS

Wieland France SAS
30 Av. de la Colombière
74950 Scionzier
France

+33 4 50 98 11 46
+33 4 50 98 61 10
Send email

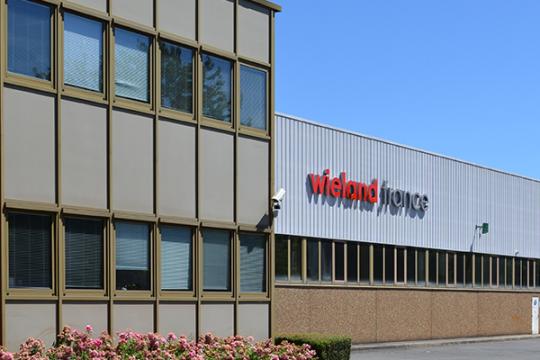

Wieland France SAS | Croissy-Beaubourg

Wieland France SAS
1 rue Léon Jouhaux, PA Pariest
77183 Croissy-Beaubourg
France

+33 1 84 25 11 42
+33 7 88 52 26 96
Send email

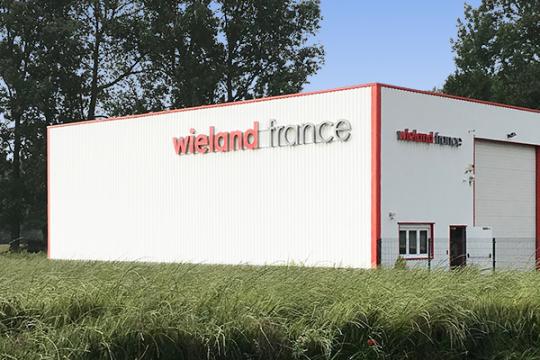

Wieland France SAS | Yzengremer

Wieland France SAS
4 rue des Quatre Vents
80520 Yzengremer
France

+33 3 22 26 04 18
Send email

Products

Our products at a glance

Product categories

Headline

Back to product overview

Complete program

Rods

ecoline^®: Lead-free solutions

Sheets and Plates

Smooth industrial tubes

Plumbing tubes

Refrigeration and medical gas tubes

Wire

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.
K41	CuNi1Pb1P*	-	C19150 / C19160
KC1	CuPb1P	CW113C	C18700

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z11	CuZn35Pb1	CW600N	C34000
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z14	CuZn37Pb2	CW606N	C35300
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z29	CuZn39Pb2	CW612N	C37700
Z31/Z41/Z48	CuZn40Pb2	CW617N	C38000
Z32/Z33	CuZn39Pb3	CW614N	C38500
Z40	CuZn43Pb2Al	CW624N	-
Z43	CuZn33Pb1AlSiAs	CW725R	-
Z45/Z46	CuZn36Pb2As	CW602N	C35330

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
S40	CuZn37Mn3Al2PbSi	CW713R	C67420
eco SW1^®	CuZn21Si3P	CW724R	C69300
eco SZ2^®	CuZn36Si1P	CW726R	C68370
eco SZ3^®	CuZn40SiP	-	-
eco SZ4^®	CuZn42	CW510L	C28500
eco SZ5^®	CuZn40	CW509L	C27450

Wieland	EN Designation	EN No.	ASTM UNS-No.
B09/B10	CuSn8	CW453K	C52100
B44/B45	CuSn4Pb4Zn4	CW456K	C54400
eco BS4^®	CuSn5NiPS*	-	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
U33	CuAl10Ni5Fe4	CW307G	C63000

Wieland	EN Designation	EN No.	ASTM UNS-No.
N29	CuNi18Zn20	CW409J	-
N31	CuNi7Zn39Pb3Mn2	CW400J	-
N32	CuNi12Zn30Pb1	CW406J	-
N37	CuNi18Zn19Pb1	CW408J	-

* Material not standardized in EN

Wieland ecoline is our answer to enable your future business: the lead-free product line fulfills your individual needs for an efficient production and future oriented product development. And is, of course, compliant with the latest requirements of legislative directives on lead-free materials.

Learn more about
Wieland ecoline

* Material not standardized in EN

We can offer you a wide range of materials, geometries, and surface qualities to choose from. Many geometries are available from our sheets stores.

Learn more
Copper alloy sheets and plates

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	Dimensions
K19	Cu-DHP	CW024A	C12200	C1220	on request
K32	Cu-ETP	CW004A	C11000	C1100	on request

Wieland	EN Designation	EN No.	ASTM UNS-No.	Dimensions	Temper
Z30	CuZn39Pb2	CW612N	C37700	670 × 1340 and 600 × 2000 format; thicknesses from 0.8 to 30 mm	hardened

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.	Dimensions	Temper
M10	CuZn10	CW501L	C22000	C2200	670 × 1340, 800 × 2000, 600 × 2000 format; thicknesses from 0.3 to 16 mm	annealed, semihardened and hardened
M15	CuZn15	CW502L	C23000	C2300	670 × 1340, 800 × 2000, 600 × 2000 format; thicknesses from 0.3 to 16 mm	annealed, semihardened and hardened
M37	CuZn37	CW508L	C27200	C2720	670 × 1340, 800 × 2000, 600 × 2000 format; thicknesses from 0.3 to 16 mm	annealed, semihardened and hardened

Wieland	EN Designation	EN No.	ASTM UNS-No.	Dimensions
N12	CUNi12Zn24	CW403J	C75700	600 × 2000 and 670 × 1340 format; thicknesses from 0.3 to 3.5 mm

* Material not standardized in EN

Available materials

Wieland	EN	EN-Nr.	UNS
K08	Cu-OFE	CW009A	C10100
K12	Cu-HCP	CW021A	C10300
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K30	Cu-OF	CW008A	C10200
K65	CuFe2P	CW107C	C19400
L10	CuNi10Fe1Mn	CW352H	C70600
L30	CuNi30Mn1Fe	CW354H	C71500

Delivery forms

Level wound coils: 100 kg, 150 kg, 300 kg, 530 kg
Straight lengths
Rings

Materials

K65^®

K65 - Sustainable and efficient

Sustainable and efficient – two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO₂. Wieland supports this turnaround with a tube system that meets the high requirements of CO₂ as a refrigerant.

Wieland K65 tubes have been designed for CO₂ applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO₂. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

Moreover, K65 tubes are also available in individual dimensions and different delivery forms.
For industrial processing, in particular CO₂ heat exchanger (evaporator / gas cooler) manufacturing, level wound coils (LWC) are offered.

More K65 products in other categories

Your benefits

Pressure resistance tailormade to your needs
Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Excellent heat transfer
Design according to EN 14276 - TUEV or UL certification on demand

Typical applications

Components of R744 refrigeration systems
Fin coil heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers )
Shell and tube heat exchangers for higher operation pressures (e.g. R744 evaporators or gas coolers)

Technical properties

Material: K65
Conditions: soft R300/O61 and hard R420/H80
Delivery form: Level wound coils or straight lengths
Coil weights: 100 kg, 150 kg, 300 kg
Available dimensions: 5 - 28 mm for LWC; 5 - 110 mm for straight lengths
Usual standards: EN 12735-1 / EN 14276 / ASTM B 1017

Further information

* Material not standardized in EN

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200

Materials

For a more sustainable future in construction.

With its 100 % share of recycled material, the cuprolife copper tube makes a sustainable difference, and thus makes a significant contribution to the advancement of building and construction as well as building services.

Every cuprolife tube from Wieland is manufactured in keeping with the mass balance approach – using a process with 100 % recycled copper. As the starting point when verifying cuprolife, TÜV SÜD tested the procedure for calculating the 100 % recycled content*.

The new standard in copper tubes: cuprolife^®.

Thanks to cutting-edge manufacturing techniques, cuprolife tubes exceed even the highest requirements. Optimal efficiency and reliability are guaranteed along with an exceptional service life. cuprolife tubes are universally usable. cuprolife is permanently in stock and can be supplied in any size from 6 x 1 mm to 159 x 3 mm.

Fields of application

Domestic hot and cold water supply
Heating
Gas
Liquid gas
Heating oil / biofuel oil B10
Solar systems
Rainwater
Industrial compressed air
Sprinkler systems
Firefighting systems

Technical features

100 % recycled copper*
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification: DV-7204AU2106 (6 to 159 mm outside diameter)
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature at 10 bar operating pressure: 250 °C (applies to dimensions up to DN 150)
Fire resistance: EN 13501-1 – A1 (nonflammable)
Dimensions according to DVGW GW 392 (6 to 159 mm) with closed tube ends
For optimal drinking water hygiene

*Mass balance approach, based on ISO 14021, verified by TÜV SÜD.

Learn more

Reliable for all areas of home installation

For many years, installers have been relying on SANCO branded copper tubes. The tubes are very reliable, suitable for all areas of domestic installation and have more than proven their worth in practice. Whether drinking water supply (hot and cold), heating systems, oil, gas and liquid gas supplies as well as thermal solar systems: Wieland SANCO tubes are always the right choice and, of course, covered by the relevant regulations.

Technical features

Patented manufacturing process: SANCO tubes are significantly better than required by standards and regulations.
Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 159 mm outside diameter).
Universal use in a range of finely differentiated dimensions
Optimum availability and compatibility with a wide range of fittings
Maximum operating temperature: 250 °C
Fire resistance: EN 13501-1-A1 (non-flammable)
Dimensions according to DVGW GW 392 (12 to 159 mm) with closed tube ends
For optimal drinking water hygiene
Wide range of certifications available, such as Kitemark, Afnor, KIWA, DVGW and many others

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Solar systems
Rainwater
Industrial compressed air
Sprinkler and Fire-fighting-systems
Further applications in consultation with our technical advisory service

WICU

WICU tubes a have a mill-applied protective coating. They are therefore suitable for concealed installation under plaster or in environments with an aggressive atmosphere, and for installation outdoors, either above or below ground.

Technical features

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 42 mm outside diameter).
Protective coating conforms to EN 13349 and DIN 30672-1 class B
Reduction of condensation
Fire resistance: EN 13501-1-E
Color of coating: light gray
Temperature range up to 100 °C

Fields of application

Domestic hot and cold water supply
Heating systems
Gas and oil services for heating and cooking
Rainwater
Industrial compressed air
Further applications in consultation with our technical advisory service

WICU Flex

WICU Flex is a plumbing tube with a flexible coating for rapid installation. The coating consists of closed-cell PE foam covered by a structured protective film. WICU Flex is supplied in coils for rapid connection to manifolds etc. and for underfloor installations.

Technical properties

Design according to EN 1057, quality assured
Made of pure copper Cu-DHP
With quality mark and DVGW certification:
DV-7204AU2106 (12 to 22 mm outside diameter)
CFC/FKW-free polyethylene foam (PE) with a
PE structural foil
Sound insulation: DIN 4109 - A1
Thermal conductivity of the insulation layer according to DIN 52613:
= 0.040 W/mK at 40 °C
Fire resistance: N 13401-1-E
Color of coating: white
Temperature application range: up to 100 °C

Fields of application

Connecting tubes
Domestic hot and cold water supply
Central heating systems

cuprotherm CTX

cuprotherm CTX tubes are copper tubes with a firmly adhering coating. Due to their structure, they are very easy to process and are characterized by a flexibility so far unknown for metal tubes. CTX tubes are a technically high-quality and at the same time economically interesing solution: They offer an attractive price per meter for copper tubes at stable conditions, and are therefore also convincing in terms of reliability in planning.

Technical features

Flexible copper tube made of pure copper Cu-DHP
Temper: soft R220 according to EN 1057 with firmly adhering coating made of PE-RT
Fire behavior EN 13501-1, class E
Color of the coating: white, similar to RAL 9010 (pure white)
Temperature application range: up to 100 °C

Fields of application

Heating
Cooling
Radiator connection
Rainwater harvesting systems
Ground collectors (water/glycol)
Concrete core activation

* Material not standardized in EN

Available materials

Wieland	EN	EN-Nr.	UNS
K20 / K21 / K28	Cu-DHP	CW024A	C12200
K65	CuFE2P	CW107C	C19400

Materials

K65^®

K65 - Sustainable and efficient

two keywords that have had a decisive impact on our time and have gained in relevance in recent years, especially in refrigeration. Increased environmental awareness in society and industry has therefore led to a kind of renaissance of natural refrigerants, especially CO2. Wieland supports this turnaround with a tube system that meets the high requirements of CO2 as a refrigerant.

Wieland K65 tubes have been designed for CO2 applications in the commercial field, especially that of supermarket refrigeration systems. Wieland K65 alloy provides the mechanical strength high enough to withstand the high operating pressures of CO2. At the same time, K65 tubes have outstanding processing properties, similar to those of standard copper (Cu-DHP/C12200).
Wieland K65 tubes are offered from stock in two pressure ranges, 80 bar and 120 bar, and in dimensions ranging from 3/8” up to 2-1/8”.

All Wieland K65 tubes are available in the soft condition (R300/O61) to ensure excellent bending / flaring and collaring properties.

Other dimensions and delivery forms such as level wound coils are offered for industrial processing, in particular manufacturing of CO2 heat exchangers (evaporator/gas cooler).

More K65 products in other categories

Your benefits

Cost reduction through weight reduction
Proven processing technology: brazing instead of welding!
Economical and safe installation of regrigeration systems with up to 120 bar operation pressure
Excellent heat transfer
Design according to EN 14276

Typical applications

Pipelines for refrigeration systems, in particular for CO2 refrigerant, with an operation pressure of up to 120 bar

Technical properties

Material: K65
Operation pressure: 80 bar and 120 bar
Condition: soft R300/O61
Delivery form: straight lengths of 5 m
Available dimensions: 9,52 - 53,97 mm (3/8" - 2-1/8")
Tube ends: closed
Usual standards: EN 14276 / EN 12735-1

Further information

* Material not standardized in EN

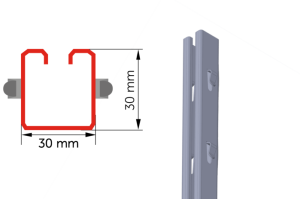

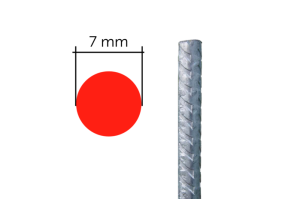

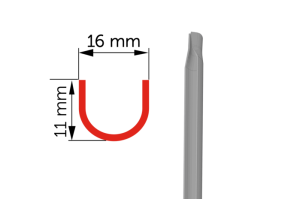

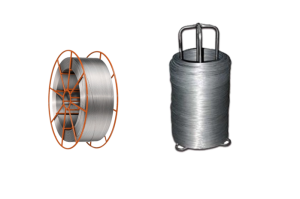

Wieland can offer you wire and sectional made of a wide range of materials: wrought copper alloys and alloys extending from brass, both with and without lead, to bronze, to German silver. And in combination with material properties, sizes, and geometries, our delivery portfolio can meet virtually every requirement. Simply contact us!

Materials

Wieland	EN Designation	EN No.	ASTM UNS-No.	JIS-No.
Z12	CuZn35Pb2	CW601N	C34200 / C34500
Z21	CuZn38Pb2	CW608N		C3713
Z23	CuZn36Pb3	CW603N	C36000
Z32/Z33	CuZn39Pb3	CW614N	C38500

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco M58^®	CuZn42	CW510L	-

Wieland	EN Designation	EN No.	ASTM UNS-No.
eco SW1^®	CuZn21Si3P	CW724R	C69300

Wieland	EN Designation	EN No.	ASTM UNS-No.
N31	CuNi7Zn39Pb3Mn2	CW400J	-

* Material not standardized in EN

Resources

Information material and important documents for download

All Brochures Certificates Terms and conditions

Brochures Gamme-de-produits-Wieland-France.pdf

79.85 KiB

Download

Brochures Catalogue-produits-Plomberie-chauffage-ACR-et-gaz-médicaux.pdf

5.14 MiB

Download

Brochures Product-catalog-Plumbing-Heating-ACR-and-Medical-Copper-Tubes.pdf

4.86 MiB

Download

Certificates ISO-9001-2015_Wieland-France-SAS_FR.pdf

1.78 MiB

Download

Certificates 241128-einkaufsbedingungen-gruppe-dina4-fr.pdf

422.58 KiB

Download

Terms and conditions Allgemeine-Einkaufsbedingungen.pdf

421.38 KiB

Download

Terms and conditions General-Terms-and-Conditions-of-Purchase.pdf

419.13 KiB

Download

Terms and conditions General-Terms-and-Conditions-of-Delivery.pdf

429.54 KiB

Download

Terms and conditions Conditions-Générales-de-Livraison.pdf

534.83 KiB

Download

Terms and conditions Conditions-générales-d’achat.pdf

422.58 KiB

Download

Contact person

Get in touch - Your contact person at Wieland France SAS

Foto Cyril Vulin Cyril Vulin
Managing Director
+41 32 617 39 57
Send email

Foto Nicolas Pabiou Nicolas Pabiou
Sales Manager
Wieland France
+33 6 60 06 56 79
Send email

Foto Hubert Duhoux Hubert Duhoux
Administration | Finance
Wieland France
+33 450 914513
Send email

Kein Foto vorhanden Agnès Fiogère
Sales Extruded and Drawn Products
Wieland France
+33 4 50 98 48 48
Send email

Kein Foto vorhanden Christina Lecompte
Plumbing tubes France
Wieland France
+33 4 50987380
Send email

Kein Foto vorhanden Cindy Rossi
Sales Extruded and Drawn Products
Wieland France
+33 450 914511
Send email

Kein Foto vorhanden Kerstin Lehnkering
Sales sheets / Extruded and Drawn Products
Wieland France
+33 4 50 91 45 11
Send email

Kein Foto vorhanden Dacia Le Marié
Sales Tubes
Wieland France
+33 4 50 91 45 18
Send email

Legal information

Wieland France SAS
30, avenue de la Colombière
74950 Scionzier
France

President
Cyril Vulin

Registered office
Scionzier

Company registered in the Annecy trade register under number 682 033 519 000 62
VAT identification number: FR 29 682 033 519

Career

Start your career at Wieland France SAS

Unleash potential.

Your career at Wieland

Welcome to Wieland. I am your virtual assistant.

Do you need help finding information?

Already know your search term? Then go ahead and use our full text search. You will get a list of all relevant results.

Wieland France SAS

Organization

Facts

Locations

Global proximity you can count on

Wieland France SAS

Wieland France SAS | Croissy-Beaubourg

Wieland France SAS | Yzengremer

Products

Our products at a glance

Product categories

Headline

Materials

Materials

Materials

K65 - Sustainable and efficient

More K65 products in other categories

Your benefits

Typical applications

Technical properties

Further information

Available materials

Materials

For a more sustainable future in construction.

The new standard in copper tubes: cuprolife®.

Fields of application

Technical features

Reliable for all areas of home installation

Technical features

Fields of application

WICU

Technical features

Fields of application

WICU Flex

Technical properties

Fields of application

cuprotherm CTX

Technical features

Fields of application

Available materials

Materials

K65 - Sustainable and efficient

More K65 products in other categories

Your benefits

Typical applications

Technical properties

Further information

Materials

Resources

Information material and important documents for download

Contact person

Get in touch - Your contact person at Wieland France SAS

Career

Start your career at Wieland France SAS

Contact

The new standard in copper tubes: cuprolife^®.
