Rolled products
Indispensable input stock for complex applications. Our rolled products are used to make plug connectors, metal goods, and elements for semiconductors, from the smallest integrated circuits to power electronics components.
The knowledge invested in the plain input stock is often the basis of our customers’ success. So that the copper alloy fulfils exactly your specific requirements, whether for conductivity, surface quality, temperature resistance, or relaxation resistance, we offer you not only a suitable range of materials to choose from, but also and above all: advice. Together we therefore mould the future – in the semiconductor and equally in the automotive and electronics industries.
An overview of our current brochures and flyers for download can be found on our Rolled Products infopage.
Our range of products
Our rolled products at a glance.
Wieland Nemco
This is our Wieland Nemco product portfolio.

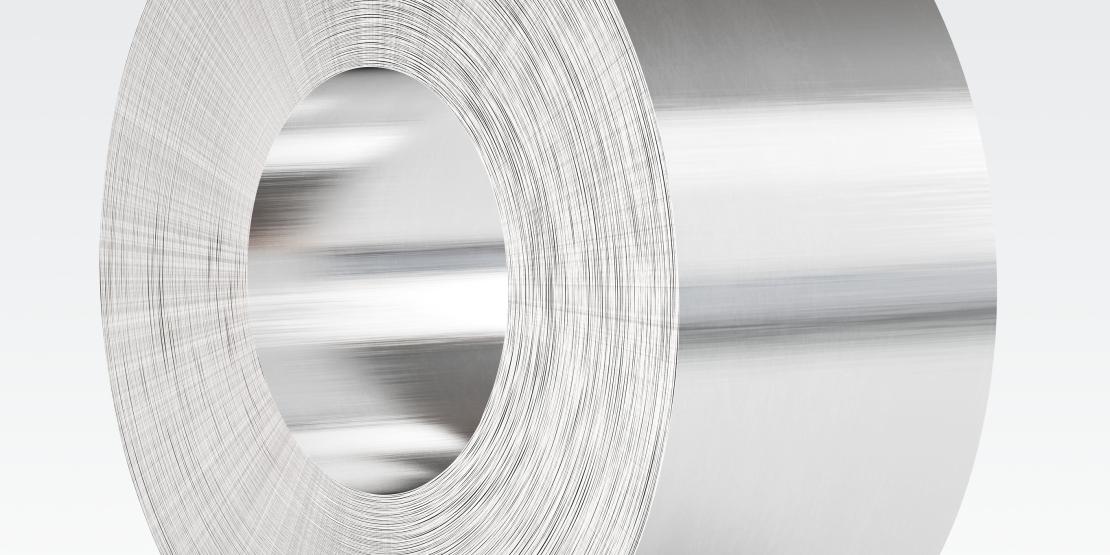

Strip
Hot-dip tin coated strip
Multi-gauge strip
Sheets and Plates
Foil
![](https://www.wieland.com/var/media/cache/image_2x1_col_12/var/site/storage/images/9/2/9/1/571929-1-eng-GB/4304baafb2d8-gespulte-baender.jpg)
Learn more
Strips for connector
Hot dip tinned copper and copper-alloy strip
Strip for semiconductor packages
Materials
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
K09 | Cu-OFE | CW009A | C10100 | C1011 |
K11 | Cu-OF | CW008A | C10200 | |
K12 | Cu-HCP | CW021A | C10300 | |
K14 | Cu-PHC | CW020A | C10300 | |
K15 | Cu-DLP | CW023A | C12000 | C1201 |
K19 | Cu-DHP | CW024A | C12200 | C1220 |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K65 | CuFe2P | CW107C | C19400 |
K80 | CuFe0,1P* | - | C19210 |
K81 | CuSn0,15 | CW117C | C14415 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K55 | CuNi3Si1Mg* | - | C70250 |
K57 | CuNi1Co1Si* | - | C70350 |
K58 | CuNi3Si1Mg | - | C70250 |
K73 | CuNi1ZnSi* | - | C19005 |
K75 | CuCrSiTi* | - | C18070 |
K76 | CuNiSiP* | - | C19010 |
K82 | - | - | C15100 |
K88 | CuCrAgFeTiSi* | - | C18080 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
M42 | CuZn42 | CW510L | - | |
Z20 | CuZn40 | CW509L | C28000 | |
Z21 | CuZn38Pb2 | CW608N | C3713 | |
Z30 | CuZn39Pb2 | CW612N | C37700 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
M05 | CuZn5 | CW500L | C21000 | C2100 |
M10 | CuZn10 | CW501L | C22000 | C2200 |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M20 | CuZn20 | CW503L | C24000 | C2400 |
M30 | CuZn30 | CW505L | C26000 | C2600 |
M33 | CuZn33 | CW506L | C26800 | C2680 |
M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
M37 | CuZn37 | CW508L | C27200 | C2720 |
M38 | CuZn37 | CW508L | C27200 | C2720 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
S12 | CuSn3Zn9 | CW454K | C42500 | C4250 |
S23 | CuZn23Al3Co | CW703R | C68800 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
B14 | CuSn4 | CW450K | C51100 | |
B14 Supralloy | CuSn4 | CW450K | C51100 | |
B15 | CuSn5 | CW451K | C51000 | |
B16 | CuSn6 | CW452K | C51900 | |
B16 Supralloy | CuSn6 | CW452K | C51900 | |
B18 | CuSn8 | CW453K | C52100 | C5212 |
B18 Supralloy | CuSn8 | CW453K | C52100 | C5212 |
B31 | CuSn2Fe0,1P* | - | C50715 |
![](https://www.wieland.com/var/media/cache/image_2x1_col_12/var/site/storage/images/4/2/9/2/572924-4-eng-GB/fb15f62557cf-W-Drawing_2022_3D_tinned_strip-1-.png)
![](https://www.wieland.com/var/media/cache/image_2x1_col_12/var/dam/celum/7449.jpg)
Learn more

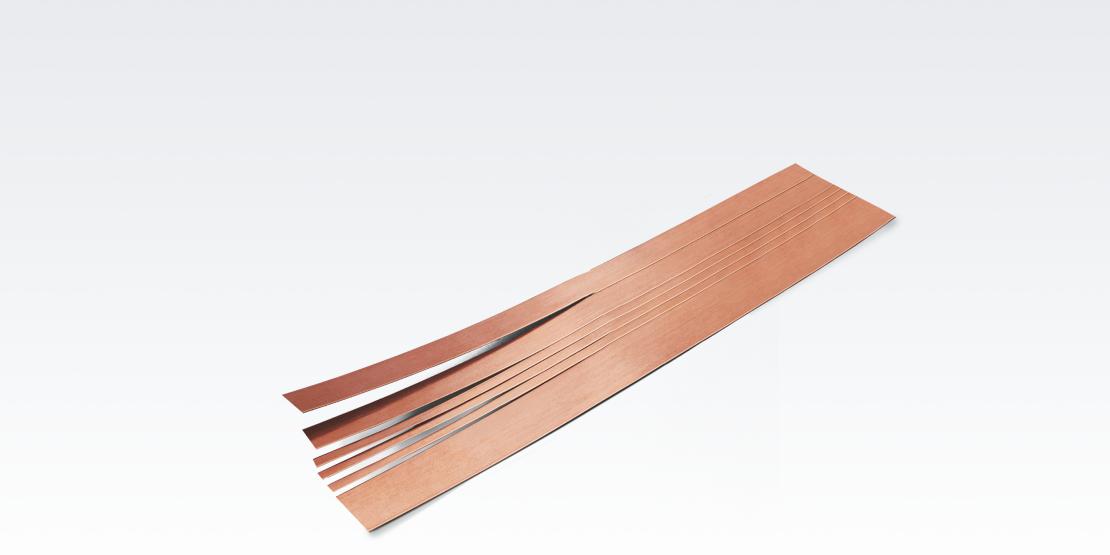

Multi-gauge strip
![](https://www.wieland.com/var/media/cache/image_2x1_col_12/var/site/storage/images/9/1/8/2/572819-3-eng-GB/0a4fcdde2ea8-Sheets.jpg)
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K55 | CuNi3Si1Mg* | - | C70250 |
K57 | CuNi1Co1Si* | - | C70350 |
K58 | CuNi3Si1Mg | - | C70250 |
K73 | CuNi1ZnSi* | - | C19005 |
K75 | CuCrSiTi* | - | C18070 |
K76 | CuNiSiP* | - | C19010 |
K82 | - | - | C15100 |
K88 | CuCrAgFeTiSi* | - | C18080 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
Z21 | CuZn38Pb2 | CW608N | C3713 | |
Z30 | CuZn39Pb2 | CW612N | C37700 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
M05 | CuZn5 | CW500L | C21000 | C2100 |
M10 | CuZn10 | CW501L | C22000 | C2200 |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M20 | CuZn20 | CW503L | C24000 | C2400 |
M30 | CuZn30 | CW505L | C26000 | C2600 |
M33 | CuZn33 | CW506L | C26800 | C2680 |
M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
M37 | CuZn37 | CW508L | C27200 | C2720 |
M38 | CuZn37 | CW508L | C27200 | C2720 |
![](https://www.wieland.com/var/media/cache/image_2x1_col_12/var/site/storage/images/1/2/9/2/572921-3-eng-GB/361a69cd5825-W-Drawing_2022_3D_Copper_foli_strip.png)
Materials
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
K04 | - | - | C15500 | |
K11 | Cu-OF | CW008A | C10200 | |
K19 | Cu-DHP | CW024A | C12200 | C1220 |
K32 | Cu-ETP | CW004A | C11000 | C1100 |
KG1 | - | - | C19700 | |
KG4 | - | - | C19020 | |
KG6 | - | - | C19720 | |
KG9 | - | - | C19025 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K65 | CuFe2P | CW107C | C19400 |
K80 | CuFe0,1P* | - | C19210 |
K85 | - | - | C19700 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
K55 | CuNi3Si1Mg* | - | C70250 |
K58 | CuNi3Si1Mg | - | C70250 |
K76 | CuNiSiP* | - | C19010 |
K82 | - | - | C15100 |
K88 | CuCrAgFeTiSi* | - | C18080 |
Wieland | EN Designation | EN No. | JIS-No. |
---|---|---|---|
Z21 | CuZn38Pb2 | CW608N | C3713 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
L23 | - | - | C70600 |
L24 | - | - | C71000 |
L26 | - | - | C71300 |
L27 | - | - | C71500 |
L49 | CuNi9Sn2 | CW351H | C72500 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
M05 | CuZn5 | CW500L | C21000 | C2100 |
M10 | CuZn10 | CW501L | C22000 | C2200 |
M12 | - | - | C22600 | |
M15 | CuZn15 | CW502L | C23000 | C2300 |
M30 | CuZn30 | CW505L | C26000 | C2600 |
M33 | CuZn33 | CW506L | C26800 | C2680 |
M36 | CuZn36 | CW507L | C26800 / C27000 | C2700 |
M37 | CuZn37 | CW508L | C27200 | C2720 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
S12 | CuSn3Zn9 | CW454K | C42500 | C4250 |
S23 | CuZn23Al3Co | CW703R | C68800 | |
S57 | - | - | C41100 | |
S58 | - | - | C42200 | |
S62 | - | - | C44300 | |
S63 | - | - | C42520 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
B16 | CuSn6 | CW452K | C51900 | |
B18 | CuSn8 | CW453K | C52100 | C5212 |
B42 | - | - | C51180 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
U05 | - | - | C63800 |
Wieland | EN Designation | EN No. | ASTM UNS-No. | JIS-No. |
---|---|---|---|---|
N08 | - | - | C76200 | |
N09 | - | - | C75200 | |
N17 | CuNi18Zn27 | CW410J | C77000 | C7701 |
Wieland | EN Designation | EN No. | ASTM UNS-No. |
---|---|---|---|
G71 | - | - | C65400 |
G72 | - | - | C65500 |
